Partaker Elite Z14 15 Inch Taiwan High Temperature 5 Wire Touch Screen Intel J1900 Quad Core IP51 Panel PC With 2MM Panel

Description

Good News:

Send from China to EU/RU/UK by DPD or DHL, TAX Free, must choose seller’s shipping method.

3855U and J1900 CPU are without HDMI Port now, please note it

There is without LPT port by default,if you need it,please contact us before buy!

Model Number: Partaker Z14
Front Panel: 2mm
Opening Hole Size: 358*290mm (Length*Width)
Screen Type: Made-In-China 5 Wire Resistive Touch Screen
CPU: Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz)
OS: Windows Or Linux
RAM/SSD/HDD: Max 8G RAM, 1* MSATA + 1*2.5 Inch HDD
I/O: 3*RS232+VGA+LAN+3*USB2.0+1 USB 3.0+DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 376*307*54.6(mm)
Gross Weight: 6.5 KGS
Panel Structure：
Panel Size: 15 Inch LED Screen
Resolution: 1024*768,Screen Ratio 4:3
Display Brightness: 430cd/m(2)
Contrast: 700 : 1
Response Time: 8ms
Touch Type: Using high-quality resistance touch screen click life> 1 million times
Usage Environment:
Operating Temperature: -10℃～60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Motherboard：
BIOS： AMI 32Mbit，Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fanless Design
I/O Interface：
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Information：
Package Size: 44CM（L）*36.2CM（W）*15.5CM（H）
Physical Weight: 4.15KG / 5.25KG(Net/Gross)
Power Supply: Input: 180-240V～1.0A 50-60Hz　　Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle: Embedded Installation Buckle* 1 Set

Z14 Made-In-China 5 Wire Resistive Touch Screen CPU Option Listing:

Z14 TaiWan High Temperature 5 Wire Touch Screen CPU Option Listing:

Z14 10 Points Capacitive Touch Screen CPU Option Listing:

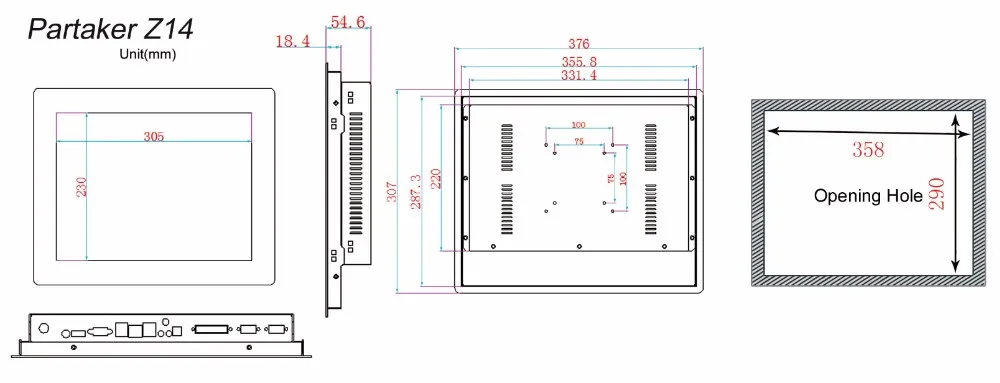

Opening Hole Size Drawing:
